Alpha-Thread AT-SQ-50-D-300 Pipe Threading Machine ( 1/2″ – 2″ )
The AT-SQ-50-D-300 threading machine can control the thread length according to actual needs.It adopts 1500w high power and 38RPM.
It can carry out long-term threading work, has high work efficiency and can accurately complete large batch tasks. The use of full-tooth die allows for more precise threading, and the die adopts a grinding process to make the pipe threads smoother. With its compact appearance, light weight and low noise, this model SQ50D threading machine is more suitable for the construction of gas pipelines.
Standard Equipment：

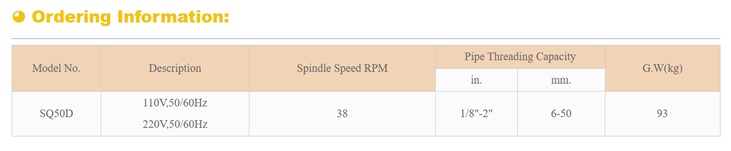

Model AT-SQ-50-D-300 Power Drive Only
● Speed Chuck
● Reversible 1500W universal motor.
● Capacity: 1/8”-2” (6mm-50mm) pipe.
● Recessed On/Off/Reverse switch.
● Approval by ETL and CE standards.
● Ideal for use with roll groovers.
● Convert a SQ50D Power Drive to a pipe threading machine or grooving machine.
● Motor: 1500W Universal, reversible motor, single-phase, 110V or 220V, 50/60Hz.
● Switch: Heavy-duty FOR/OFF/REV and Integral Foot Switch.
● Chuck: Speed chuck with replaceable rocker-action jaws.
● Spindle Speed: 38 RPM (57 RPM available)
● Rear Centering Device: Cam-action turns with chuck.
● Model SQ50D Power Drive with foot switch.
● Quick-opening die head, universal.
● ½”-¾” universal HS dies set.
● 1”-2” universal HS dies set.
● Cutter: Capacity: 1/8”-2”(3mm-50mm) pipe.
● Reamer: Positive-locking, 5-flue cone, right-hand 1/8”-2” (3mm-50mm).
● Carriage with lever.
● TRIPOD support stand.
